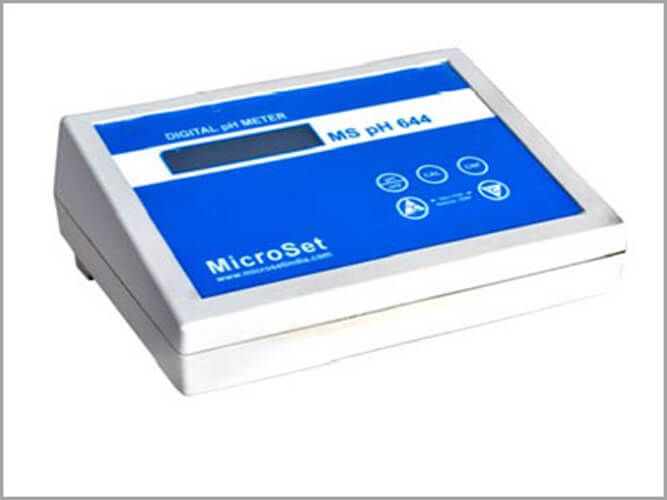

Table Top pH Meter Microprocessor based design MS pH 644

MicroSet pH meter is highly precision Instrument using latest art of technology. It Displays three function constantly on 16x 2 LCD i.e. Temp., pH & mill volt on selection. It has the facility for Auto Temp. compensation as well as manually using keys. In mVs mode the instrument can be used for Redox Potential measurement. Automatic standardization using buffers & keys is made by selecting 7.00,4.00 & 9.20 pH value. Buffers / Electrode slope error are indicated on screen.Optinal printer interface is available for pH & Temp.The Instrument is housed in a very compact ABS plastic cabinet with attractive finish & light weight for handling.pH & Temp. Sensor if open or contact problem is displayed as “OPEN”

Specifications

pH Mode mV Mode
Range
:
0 to 14 pH 0 to ±1900 mV
Resolution
:
0.01 pH ±1 mV
Accuracy
:
0.01 pH ±1 digit 1 mV ±1 digit
Buffer calibration
:
7.00, 4.00, 9.20 pH
Temp. Range
:
0 to 100°C with continuous display
Resolution
:
0.1°C
Temp.Compensation
:
Automatic & Manual
Display
:
16 characters x 2 Line LCD Backlit
Polarity & Decimal
:
Automatic
Supply
:
230 VAC
Dimensions
:
180 mm x 130 mm
Weight
:
750 gm
