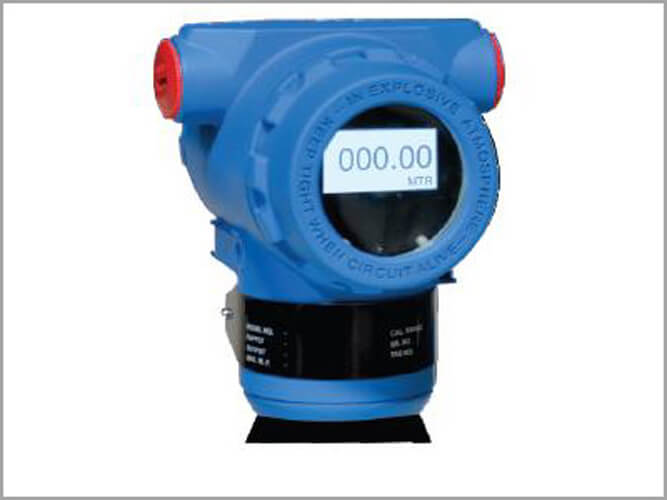

Ultrasonic Level Transmitters 4 wire - MS ULT 511
SALIENT FEATURES
  • Non contact type level measurement.
  • 4 wire operation.
  • Integral LCD Display
  • Self diagnostic function i.e. Error message are displayed.
  • Automatic temperature compensation.
  • Instrument configuration settings are password protected.
  • Accuracy 0.25% of F. S.
  • Compact size & easy maintenance.
  • Reliable & cost effective system.
  • Software calibration.

  • DESCRIPTION
    MicroSet series MS ULT - 511 is a 4 wire Ultrasonic Level Transmitters specially designed for non contact type level measurement.Ultrasonic level measurement is based on the time required by ultrasonic pulses to travel from sensor & surface of liquid & back to sensor. Ultrasonic Level Transmitters are the best for applications such as slurries, corrosive liquids & waste water. The transmitter provides 4-20 mA DC continuous output with local indication through LCD. The measuring range is available from 0.6 to 8 mtr. An expanded range upto 15 mtr. Also available on request.


    TECHNICAL SPECIFICATIONS
    Measuring Range
    :
    0.6 to 15 mtr
    Expanded Range
    :
    upto 20 mtr.
    Type of Output
    :
    4 - 20 mA DC
    Power Supply
    :
    24 V DC, External
    Power Consumption
    :
    < 500 mW
    Dead Band
    :
    0.6 mtr
    Display
    :
    8 x 1 LCD (4 digit for Level)
    Accuracy
    :
    +/- 0.25% of F. S.
    Operating Temperature
    :
    -30 to 80°C
    Operating Pressure
    :
    Atmospheric
    Beam Angle
    :
    < 7°
    Response Time
    :
    < 500 mSec
    Measuring Frequency
    :
    25 Khz
    Temperature Coefficient
    :
    +/- 0.01% per°C
    Enclosure
    :
    Weather-proof, IP-65
    Process Connection
    :
    2” BSP Threaded
    Mounting
    :
    Top of the tank
    Weight
    :
    1.5 kg
    Operating Conditions
    :
    Temperature 0 to 55°C / Humidity 5 to 95% non condensing

    NOTE : Process temperature & pressure exceeding specified limits, kindly consult with factory.
