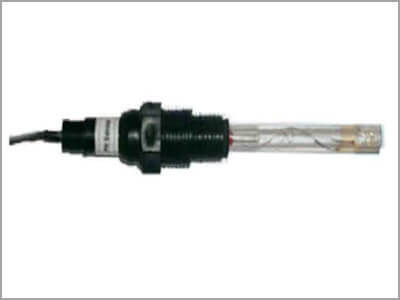

ORP Sensors with Platinum Tip MS ORP 01
Specification CPVC
Make
:
MicroSet
Model
:
MS ORP 01
Type
:
Combination
Range
:
± 2000 mV
Temp Range
:
0 to 60°C
Ref Type
:
Double Junction AgCl
Junction Type
:
Ceramic
Diameter
:
12 mm
Overall Length
:
85mm
Body
:
Epoxy
Pressure
:
5 Bar
Process Connection
:
½” & 3/4” BSP
With integral cable of 5 Meter long with BNC connector
