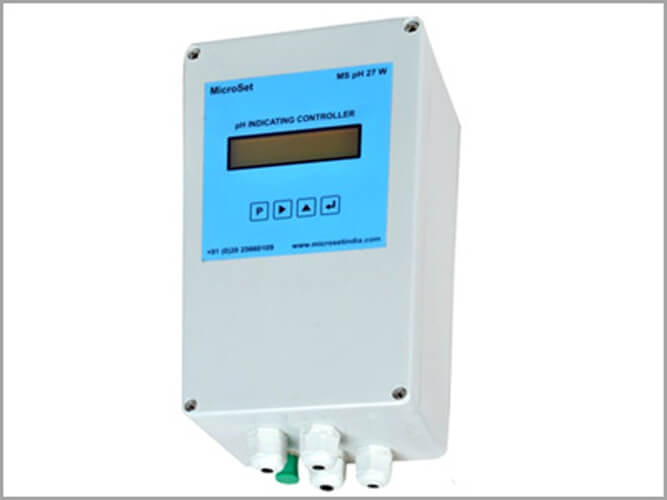

pH Indicating Controller Transmitter weatherproof

pH Indicating Controller Transmitter weatherproof


    FEATURE :
  • Advanced Embedded Microcontroller based design
  • Field Type Weather proof version
  • Easy front key calibration
  • Multi parameter display Simultaneously shows – pH, Temp, mV & Relay Status on Single screen
  • Two Programmable isolated relay outputs
  • Isolated 4 to 20 mA retransmission output

Specification
Range
:
0 -14 pH
Accuracy
:
±0.01pH
Display
:
LCD Multivariable Display Backlit
Calibration
:
Three Point Keypad
Output
:
Two isolated relays
Retransmission Output
:
Isolated 4 - 20 mA (Optional)
Temperature Compensation
:
Auto / Man Selectable (PT-100)
Repeatability
:
± 1 LSB
Power Supply
:
220-240 VAC, 50/60 Hz
Enclosure
:
ABS
Mounting
:
IP 65 Field Mounted

Note : Due Continues improvement in Product the Specifications may vary
