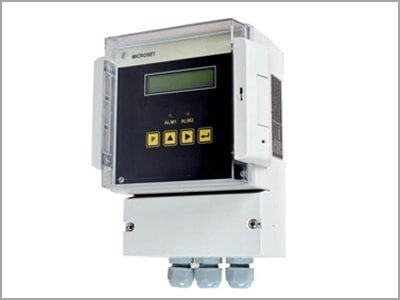

Dissolved Oxygen Indicating Controllers Cum Transmitters - MS DO 27 W

The dissolved oxygen sensor offers the most rugged design for 25 mm side ports. It fits directly into the vessel, eliminating the need for a housing, reducing contamination risks. The modular design allows quick replacement of any part, making it easy to maintain and repair the sensor.



SPECIFICATION
INSTRUMENT NAME
:
Dissolved Oxygen Indicating Controller cum
Transmitter
MODEL NO
:
MS DO 27 W
INPUT
:
From DO2 Sensor
DISPLAY
:
2 Lines X 16 Characters LCD Backlit
RETRANSMISSION O/P
:
4-20 mA dc
RELAY OUTPUT
:
02 Nos Potential free Relay contact 1 C/O 1 Amp
@230V AC for High & Low
RANGE
:
0-20 ppm
TEMP COMP
:
Pt100
PRESSURE Comp.
:
Manual Programmable
POWER SUPPLY
:
230 V ac, 50 Hz, ±10%
POWER CONSUMPTION
:
Less than 10 VA
ACCURACY
:
±0.25% of Full Scale
ISOLATION
:
1.5 KV between power supply to circuit
OPERATING TEMP
:
0 to 50°C Max
RELATIVE HUMIDITY
:
5-95% @25°C
ENCLUSURE
:
ABS IP 65
MOUNTING
:
Wall / Field Mounted
TERMINATION
:
Through Pin Type Lugs
