Conductivity Indicating Controller - MS CD 09
    FEATURE
  • On-line measurement
  • 2 wire system
  • 4-20 mA DC output
  • Auto/Manual temperature compensation
  • On-Line indication through LCD display
  • Flame-proof, IP-65, IIA, IIB CMRI certified housing


INTRODUCTION

MicroSet’s Conductivity transmitters are used for various industrial applications. It can accept input from conductivity electrode of cell constant 1 / 0.1 / 0.01 & conductivity signal is transmitted in the form of electrical 4 - 20 mA signal. The on-line conductivity indication is provided through LCD. Span/Zero adjustments are easily accessible.

    SPECIFICATION
  • Type of Input : From Conductivity Electrode
  • Cell Constant : 0.01 / 0.1 / 1
  • Type of Output : 4 - 20 mA DC, 2 wire Isolated
  • Display : 8 x 1 LCD
  • Calibration Range : Factory Calibrated
  • 0 to 100 μS/cm for cell constant 0.01
  • 0 to 1000 μS /cm for cell constant 0.1
  • 0 to 10000 μS /cm for cell constant 1
  • Temperature Compensation : Auto / Manual through RTD, Pt 100 sensor for 0-100°C
  • Accuracy : ±0.25% FS
  • Isolation : 1.4 KV between Input, Output & Power Supply
  • Power Supply : 24 V DC, External
  • Power Consumption : < 50 mW
  • Response Time : < 500 mSec
  • Temperature Coefficient : ±0.01% per °C
  • Enclosure : 1) Weather-proof, IP-65
  • 2) Flame-proof, IP-65, IIA, IIB CMRI Certified Dimensions : 135 (H) x 249 (W) including cable gland x 170 (D) in mm approx.
  • Electrical Connections : 3/4” ET
  • Mounting : 2” Pipe Mounting
  • Weight : 1 kg
  • Operating Conditions : Temperature 0 to 55°C / Humidity 5 to 95% Non-condensing

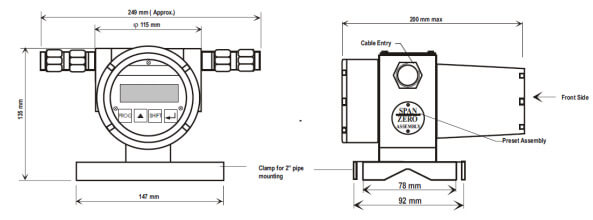

DIMENSION

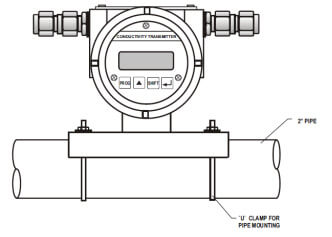

INSTALLATION
