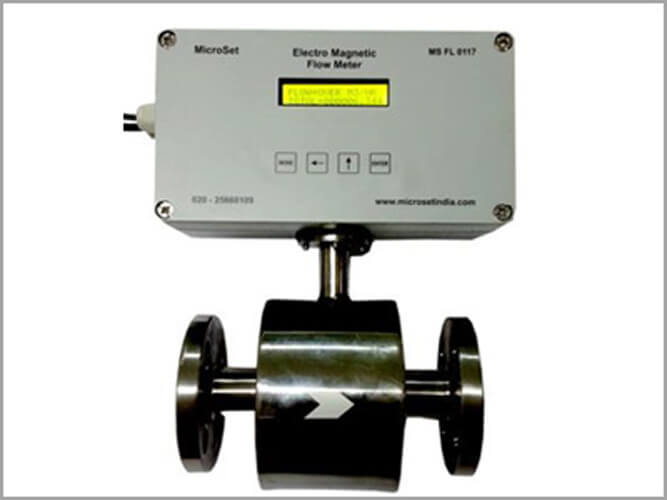

Electro Magnetic Flow Meters - MS FL 0117
    FEATURE :
  • Full Bore Type
  • Simple & cost effective construction
  • Provides wide flow ranges
  • Outstanding accuracy
  • Operates over wide ranges of temperature & pressure
  • Easy maintenance as no moving parts
  • Pulsed DC coil excitation
  • Integral grounding

Specification
Media
:
Liquids
Viscosity
:
200 cp max
Conductivity
:
Minimum 10 μS/cm
Line Size
:
15~300 mm NB
Excitation
:
Pulsed DC coil
Type of Output
:
4~20 mA DC
Calibration Range
:
As per requirement (Factory Calibrated)
Accuracy
:
±0.5% FS
Linearity
:
±0.5%
Repeatability
:
±1%
Process Temperature
:
100°C max
Process Pressure
:
10 kg/cm2
Material of Construction of Sensor
:
Hastelloy C / SS 316L
Body
:
MS/CS
Wetted Parts
:
MS/CS
Power Supply
:
230 VAC, 50Hz ±10%
Power Consumption
:
<10 VA
Response Time
:
<100 ms
Temperature Coefficient
:
±0.01% /ºC
Transmitter Enclosure
:
IP 65
Process Connections
:
Flanged ASA #150
Operating Conditions
:
Temp 0~55ºC / Humidity 5~95% non-condensing

Note : Due Continues improvement in Product the Specifications, Looks may vary
