Digital TDS & Conductivity Meter MS CD 610622

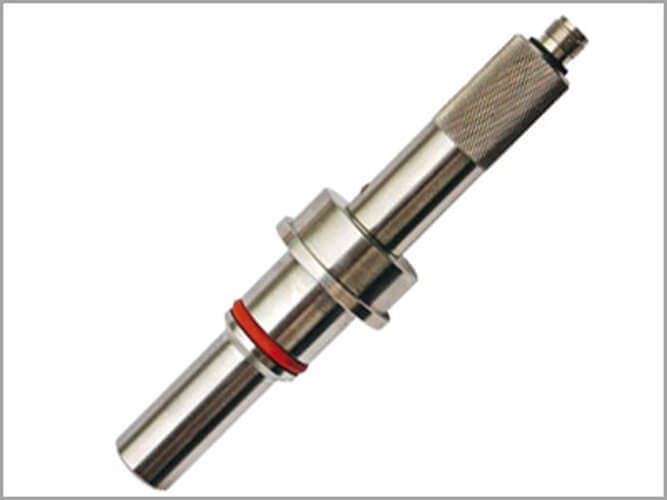

The dissolved oxygen sensor offers the most rugged design for 25 mm side ports. It fits directly into the vessel, eliminating the need for a housing, reducing contamination risks. The modular design allows quick replacement of any part, making it easy to maintain and repair the sensor.

FEATURE
  • 316L Stainless Steel
  • Sterialized for traceability
  • RA32 Finish with Electropolish on wetted parts
  • Internal and External Silicone O-rings
  • Secured retainer ring
PERFORMANCE SPECIFICATION
Measurement principal
:
Amperometric – Polarographic
Output
:
25 … 50nA
Output signal in air
:
Approx. 67 nA at 25°C
Temperature range
:
Operation: 0 to 80°C

:
Sterilization: Max. 135°C
Stability
:
Better than 2% of readout per week at constant pressure and temp (30°C)
Maximum Pressure
:
4 bar (atm), 58 psig
Oper Temperature Range
:
0 to 80°C
Shaft material
:
316SS
Shaft diameter
:
25 mm
Cable/Connector
:
4-pin
