MICROSET CONTROLS

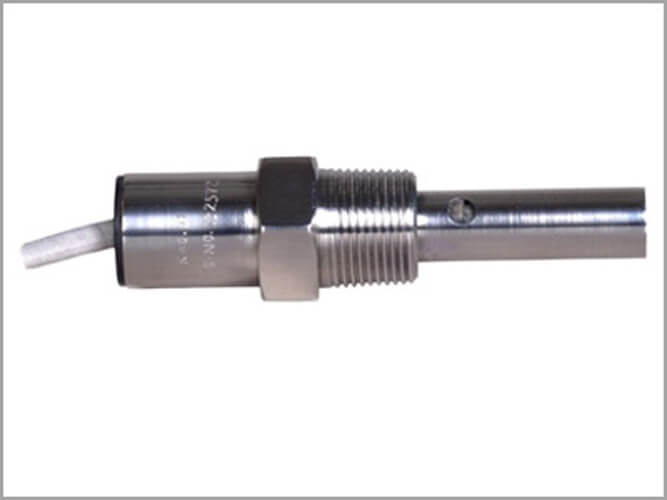

Conductivity Sensors MS CD 111
    FEATURE :
  • Measure concentration of dissolved solids in water
  • Accuracy @ 2% FS
  • Available with 1 / 0.1 / 0.01 cell constants
  • Temperature compensation through Pt 100 sensor
  • Flow through assembly in SS 316

INTRODUCTION
MicroSet’s Conductivity Sensors are designed for fast, easy & trouble free start up. These are ideal for measuring the concentration of dissolved solids in water. They are provided with an accurate pre-determined factory calibration constants. Rugged design & corrosion resistant material keep electrode spacing & surface area constant so cell constant remain stable for long period. Durability of material & high resistance to corrosion ensures the long life & require low maintenance.


Specification
Application
:
CIP, SIP, WFI and other chemicals
Cell Constant
:
1 / 0.1 / 0.01
Range
:
0 to 100 μS/cm for cell constant 0.01
0 to 1000 μS/cm for cell constant 0.1
0 to 10000 μS/cm for cell constant 1
Accuracy
:
± 2% FS
Temperature Range
:
0 to 150°C
Maximum Pressure
:
10 kg/cm2
Material of Construction
:
SS 316
Process Connections
:
1) ¾” NPT Threaded
2) 1” ASA 150 Flanged
3) 1” Tri-clover
Insertion Length
:
1) 50 mm for cell constant 0.01
2) 27.5 mm for cell constant 0.1
3) 28 mm for cell constant 1
Mounting
:
Insertion (Screw-in)
Standard Cable Length
:
5 mtr.
Weight
:
0.5 kg
