DESCRIPTION :

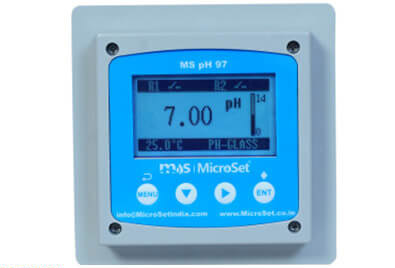

MicroSet pH ORP Indicating Controller Transmitter Model MS pH 97 is used for various industrial applications. MS pH 97 is a convenient and cost-effective solution for monitoring and maintaining pH or ORP value. It can accept input from any pH or ORP sensor. MS pH 97 output is in the form of Analogue 4-20 mA DC or MODBUS RS 485 RTU (Optional). Online pH ORP indication provided through LCD display is easily readable. 2 Nos Relay Outputs are provided to operate Alarm, Solenoid Valve, Pump etc. 4 Nos Setpoints for Relays can be programmed using Frontal Keypad.
PRINCIPLE
Why pH Measurement is required?
To check the acidic or alkaline nature of aqueous solution. pH (Potential Hydrogen) is unit of measurement, used to determine the Acidity or Alkalinity of an aqueous solution. Practical pH scale for industrial instrumentation ranges from 0 to 14 pH. The acidic substances range from 0 to 6 and on the other end are the alkaline substances, which range from 8 to 14, with pH 7 being neutral, this is the pH of pure water which is neither very acidic nor very alkaline, is said to be neutral.
How pH is measured?
Although everyone is familiar with Litmus paper, the only reliable way to measure pH is using Potentiometric Combination electrodes. These electrodes develop a millivolts output corresponding to pH value of solution which is directly proportional to the Free Hydrogen ion concentration in an aqueous Solution. These generated raw mill volts are fed to MS pH 97 where it is processed by amplifier & reading is displayed on meter
TECHNICAL SPECIFICATION |
|
| pH Range: | 0 - 14 pH |
| ORP Range : | ± 2000 mV |
| Temperature Range : | -10 to 150°C |
| pH Resolution: | 0.01 pH |
| ORP Resolution : | 1 mV |
| Temperature Resolution: | 0.1°C |
| pH Accuracy: | 0.1% FS or ± 0.01pH |
| ORP Accuracy : | ± 2 mV |
| Stability: | 0.05% of measuring range every 24 hours without accumulation pH |
| Repeatability: | Better than 0.1% of measuring range |
| Display: | 128*64, 3.2-inch graphic dot matrix LCD |
| Set Point: | 4 Nos |
| Calibration: | pH - 3 Point, ORP - 2 Point |
| Output: | Two SPST relays, Max. load 3A/250VAC, set high/low alarm, temp or clean control |
| Retransmission Output: | Isolated 4-20 mA DC for pH/ORP Max. load 1000Ω ( RS 485 Optional) |
| Temperature Compensation : | Auto (PT-100), Manual (Adjustable 0 to 150°C) |
| Power Supply: | 100~240V 50/60Hz |
| Enclosure MOC: | ABS |
| Protection : | Weatherproof IP 66 |
| Work Temperature : | 0～60℃, RH<95%, non-condensin |
| Storage Temperature : | -20～70℃, RH<55%, non-condensing |
| Mounting: | Panel Mounted |
| Electrical Interface: | Reserve three M12*1.5 gland |
| Dimensions : | 100 x 100 x120mm (Panel Cutout size 92X92mm) |
| Weight: | 0.45 kg |
| Power Consumption: | 3W |
