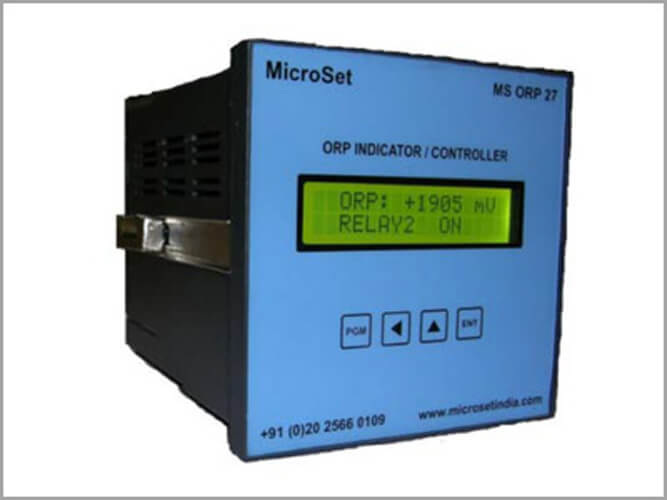

ORP Indicating Controllers MS ORP 27

It is a high-precision ORP meter for continuous mV. The ORP meter is easy to operate as it has the least number of controls. CHECK facility saves time from every day buffer standardization and hence is most suitable for quick analysis. It is a very sleek attractive finished instrument.

Specification
Range
:
MicroSet
Display
:
2 x 16 Characters LCD Backlit
Power Supply
:
230 VAC, ± 10%, 50 Hz
Accuracy
:
± 0.2% of FS
Resolution
:
1 mV
Set Points
:
02 Nos. High & Low
Control output
:
02 Nos. Potential Free Relay 230VAc/ 5A
Enclosure
:
ABS
Dimensions
:
96 x 96 x 120 mm
Mounting
:
Panel Mounted
Relative Humidity
:
5-95 % RH Non Condensating
Operating Temp.
:
0 TO 55°C
Output
:
Retransmission 4 to 20 mA Isolated ( Optional)
