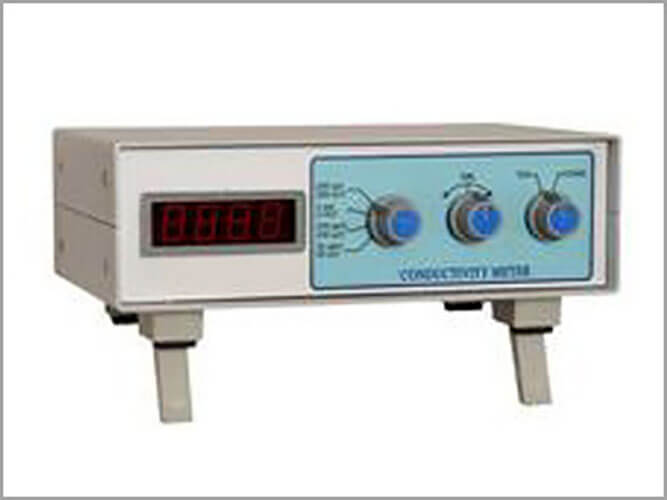

Conductivity Meter - MS CD 622

Owing to our manufacturing facilities, we offer a wide array of Digital Conductivity MS CD 622 This instrument is a reading meter that measures the solution’s conductivity with the aid of a Conductivity cell. Without the manual balance, the specific conductivity can be read on the digital display. Integrated circuits are included in these instruments and that keep the power consumption low.

Specification
Frequency Source
:
In built automatically selected
Selectable Ranges
:
0-20μS, 200μs, 2ms & 200ms / cms,
Measuring Accuracy
:
±1% of F.S. in all ranges ±1 count @ 20°C
Indication
:
3.5 Digit LED
Calibration
:
Single Point Manually
Decimal
:
Automatic selection
Conductivity cell
:
Approx. 1.0 cell constant with plastic protective cover (optional 0.1 cell)
Power Requirement
:
230 ± 10% 50 Hz single phase approx
Environment
:
0 to 50°C
Dimension
:
205mmx65mmx130mm.
Weight
:
1.5 Kg. in Aluminum Cabinet
Standard Accessories
:
Conductivity cell, Stand, Rod, Clamp & Manual
